Our products conform to GB, AISI, ASTM, DIN, EN, JIS standard for stainlesss steel coil, sheet and plate.
|
Product Name |

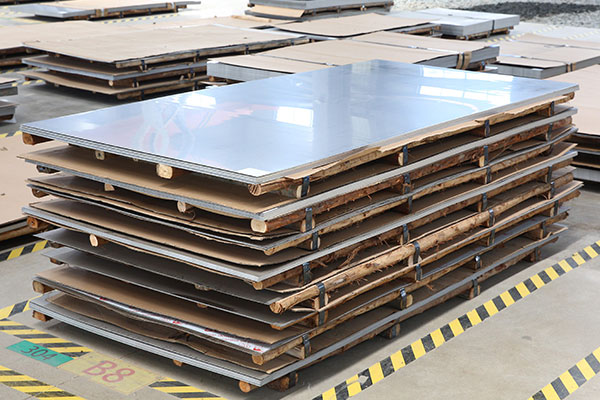

316/316L Stainless Steel Plate, 316/316L Stainless Steel Sheet |
|
Equivalent Grade |
316: AISI 316, UNS S31600, SAE 316, DIN 1.4401, SUS 316, X5CrNiMo17-12-2 |
|
316L: AISI 316L, UNS S31603, SAE 316L, DIN 1.4404, SUS 316L, X2CrNiMo17-12-2 |
|
|
Standard |
GB, AISI, ASTM, DIN, EN, JIS |
|
Process |
Hot Rolled, Cold Rolled, Forged |
|
Sizes |
Thickness: 0.3-200mm, Width: 10-4000mm |
|
Surface Treatment |
NO.1, 1D, 2D, 2B, NO.4, BA,HL,Mirror, Embossim, Sandblasted |
|
Fabricating |
Rolling, Bending, Slitting, Decoiling, Cutting, Drilling, Punching, Beveling, Welding etc. |
|
Inspection |
SGS, TUV, BV, ABS, LR etc. |
|
Application |
Oil&Gas, Petroleum, Vessels, Ship Building, Water Treatment And Environmental Protection etc. |
316/316L stainless steel plate is a austenitic stainless steel gtades that has molybdenum content. The addition of molybdenum leads to exceptional performance in corrosive environments making it a commonly chosen material for chemical processing equipment and heat exchangers etc..
| Single Sheet Of Rolling Specification | |||||||
| Thickness/Width | 1500 | 1800 | 2000 | 2200 | 2400 | 2500 | 3200 |
| 4-6mm | √ | √ | - | - | - | - | - |
| 6-10mm | √ | √ | √ | √ | √ | - | - |
| 11-12mm | √ | √ | √ | √ | √ | √ | √ |
| 13-14mm | √ | √ | √ | √ | √ | √ | √ |
| 17-25mm | √ | √ | √ | √ | √ | √ | √ |
| 26-70mm | √ | √ | √ | √ | √ | √ | √ |
| 71-120mm | special | special | special | special | special | special | special |
316/316L Stainless Steel Grade::
For maximum corrosion resistance, the material should be annealed at 1900°F (1038°C) minimum and water quenched or rapidly cooled by other means after hot working.
316/316L Stainless Steel Grade:
It is quite ductile and forms easily. Cold working operations will increase the strength and hardness of the alloy and might leave it slightly magnetic.
316/316L Stainless Steel Grade:
It can be readily welded by most standard processes.
|
|
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mo |
N |
Cu |
|
316 |
0.08 |
2.00 |
0.045 |
0.03 |
0.75 |
16.00-18.00 |
10.00-14.00 |
2.00-3.00 |
0.10 |
/ |
|
316L |
0.03 |
2.00 |
0.045 |
0.03 |
0.75 |
16.00-18.00 |
10.00-14.00 |
2.00-3.00 |
0.10 |
/ |
|
|
Tensile Strength (min) |
Yield Strength (min) |
Elongation |
Hardness, max |
|||
|
|
ksi |
Mpa |
ksi |
Mpa |
/ |
Brinell.HBW |
Rockwell |
|
316 |
75 |
515 |
30 |
205 |
40 |
217 |
95HRBW |
|
316L |
70 |
485 |
25 |
170 |
40 |
217 |
95HRBW |
What Is The Difference Between 316 And 316L?
Answer:
316L stainless steel has many of the same mechanical properties of 316 stainless steel, just contain lower levels of carbon. Lower carbon content is the only chemical difference between these two grades, leading 316L immune from sensitisation or grain boundary carbide precipitation, and easier to machine.
How Does This Stainless Steel Grade Perform At Elevated Temperatures?
Answer:
It performs extremely well at temperatures up to 120°F. The grades can be used in high concentrations at temperatures up to 120°F (38°C).
How Does This Stainless Steel Grade Perform At Elevated Temperatures?
Answer:
The letters L, F, N, or H following some stainless steel grades indicate slight differences in chemical composition. In the case of 316L, the L indicates that there is lower carbon content than is found in the 316 grade.
