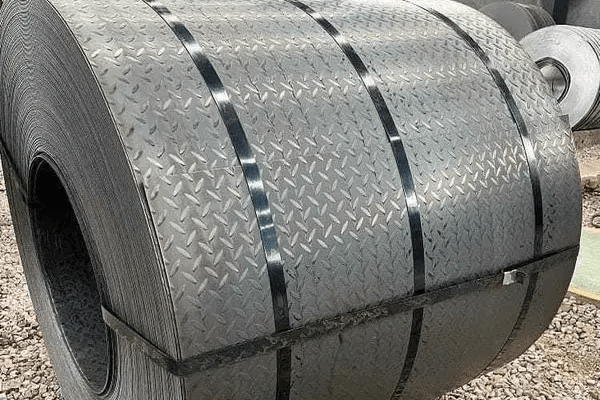

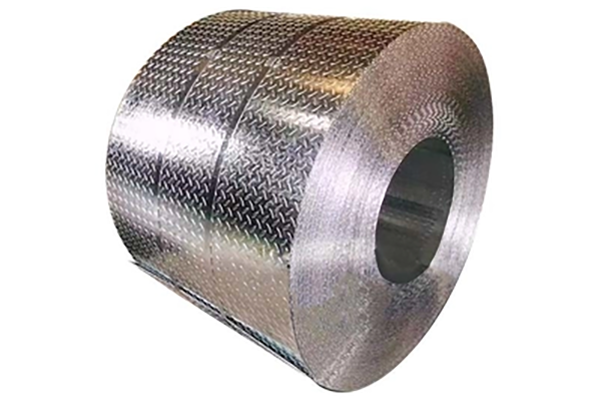

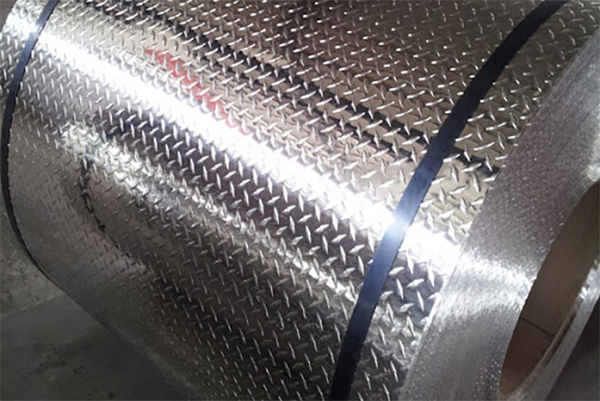

304 Stainless Steel Chequered Coils

Stainless Steel Chequered Coils are versatile and durable stainless steel materials, featuring raised patterns for enhanced slip resistance and aesthetic appeal. They are primarily used in environments that require high strength, excellent corrosion resistance, and non-slip properties. These chequered coils are widely used in industries such as construction, transportation, and manufacturing. Available in various grades, including 304 and more, they are perfect for both decorative and functional applications.
GET A QUOTE  or  Download Spec Sheet
304 Stainless Steel Chequered Coils
304 Stainless Steel Chequered Coils
304 Stainless Steel Chequered Coils

MORE DETAILS ABOUT 304 Stainless Steel Chequered Coils

Application of Stainless Steel Sheets/Coils
Architectural Application
Stainless Steel Checker Plates offer strengthdurability,and slip resistance, making themideal for building facades, staircases, andarchitectural features.They are commonly usedin commercial buildings, public infrastructure,and industrial facilities where both safety and aesthetics are important.

Interior Design
Stainless Steel Checker Plates contribute tostylish,contemporary interior designs. Theirtextured patterns and metallic finish enhancethe modern.industrial aesthetic of walls.ceilings, countertops, and furniture.

Ramps
Stainless Steel Checker Plates offer exceptionalslip resistance and durability. Their raised patterns enhance traction,ensuring safety inwet, oily, or high-traffic areas. They are widelyutilized in commercial, industrial, and publicaccess ramps.

Vehicle Interior
Stainless Steel Checker Plates improve vehicleflooring, cargo areas, and interior trims. Theiranti-slip properties and impact resistanceenhance safety and durability, making themideal for trucks, buses, and trailers.


Product Name

304 Stainless Steel Chequered Coils, 304 Stainless Chequered Coils, 304 SS Chequered Coils

Standard GB, AISI, ASTM, DIN, EN, JIS
Available Grades 304
Process Hot Rolled, Cold Rolled
Sizes

Thickness:3/4/5mm

Width:1219mm & 1500mm in slit edge ; 1250mm & 1530mm in mill edge

Surface Treatment NO.1, 2B


GENERAL INFO ABOUT EACH Stainless Steel Coil GRADE

This product is hot-rolled into a patterned plate coil by a stainless steel factory, and undergoes solid solution pickling and other production processes.
Stainless steel grade: 304
The front pattern of the stainless steel patterned plate is clear, the edges and corners are sharp, and the pattern is beautiful.
The angle design is reasonable, the anti-slip coefficient is 90% higher than that of ordinary stamping patterned plates, and the anti-slip performance is excellent.
The back of the patterned plate is flat, easy to install, and the load-bearing capacity is stronger than that of the substrate of the same thickness.
Patterned plates are widely used in application scenarios such as anti-corrosion, high pressure resistance, high safety requirements, and high hygiene standards. Since its launch, the product has been widely recognized and praised by customers!

Single Sheet of Plate Specification
Thickness Width
3/4/5mm 1219mm & 1500mm in slit edge
3/4/5mm 1250mm & 1530mm in mill edge


MORE DETAILS ABOUT EACH Stainless Steel Coil GRADE

  • Hot Forming For 304/304L/304H STAINLESS STEEL COIL
  • Cold Forming For 304/304L/304H STAINLESS STEEL COIL
304/304L/304H Stainless Steel Grade:

For maximum corrosion resistance, the material should be annealed at 1900°F (1038°C) minimum and water quenched or rapidly cooled by other means after hot working.

304/304L/304H Stainless Steel Grade:


It is quite ductile and forms easily. Cold working operations will increase the strength and hardness of the alloy and might leave it slightly magnetic.

CHEMICAL PROPERTIES

Material C Mn P S Si Cr Ni Mo N Cu
304 0.07 2 0.045 0.03 0.75 17.50-19.50 8.00-10.5 / 0.1 /

MECHANICAL PROPERTIES

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201

MORE DETAILS ABOUT EACH Stainless Steel Coil PROCESS

  • Hot Rolled
  • Cold Rolled

Hot rolling is a metalworking process. Such as steel ingots or billets are difficult to deform and process at room temperature, they are generally heated to 1100 to 1250° for rolling, this rolling process is called hot rolling. Most steel materials are rolled by hot rolling, the steel delivered in the hot-rolled state has a certain degree of corrosion resistance due to the high temperature, so it can bestored in the open air. In addition, hot rolling is that it can destroy the casting structure of the ingot, refine the grain of the steel, eliminate structural defects, make the steel structure dense,  and improve the hardness of the hot rolled steel.

Cold rolling refers to a rolling process that uses the pressure of rolls to squeeze steel to change the shape of the steel at room temperature. The advantafe of cold rolling is fast forming speed, high output, the coating is not damaged, and it can be made into a variety of cross-sectional forms to meet the needs of the use conditions. In addition, cold rolling can cause large plastic deformation of the steel, thereby increasing the yield point of the steel. Which is Widely used in home appliances and other industries.

MORE DETAILS ABOUT EACH Stainless Steel Coil SURFACE

  • NO.1
  • 2B
NO.1 surface treated by heat treatment and pickling after hot rolling. The  appearance is silver white, matt and bright. This surface is suitable for industries that require heat resistance and corrosion resistance, and the surface brightness is not important. Common applications include industrial tank and chemical industrial plants etc..
After 2D treatment, the final process is lightly cold rolled by a polishing roller to obtain proper gloss. The appearance is smooth and bright, and easy to re-grind to make the surface more brighter.  Common applications include building materials, tableware etc..
