304 Stainless Steel Chequered Plates

Stainless Steel Chequered Plates are durable metal sheets with raised patterns on the surface, designed for applications requiring slip resistance, decoration, and structural reinforcement. Made from high-quality stainless steel grades such as 304 and others, these plates are ideal for environments demanding excellent corrosion resistance and strength. They are widely used in the industrial, construction, and transportation sectors. Ronsco is proud to exported it to more than 80 countries.

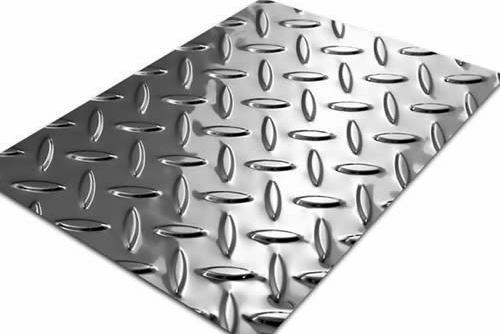

304 Stainless Steel Chequered Plates

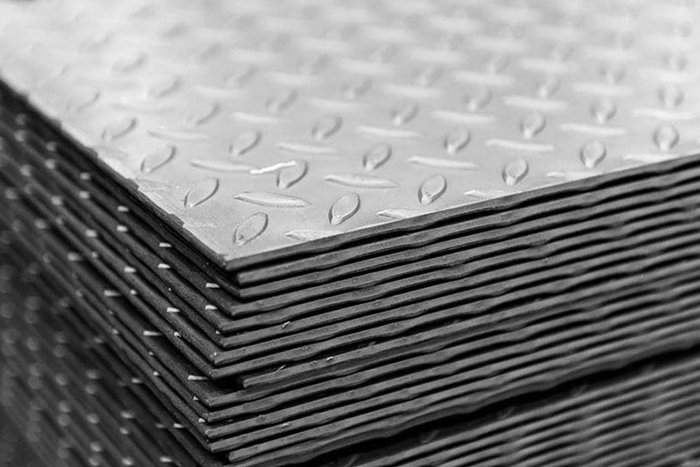

304 Stainless Steel Chequered Plates

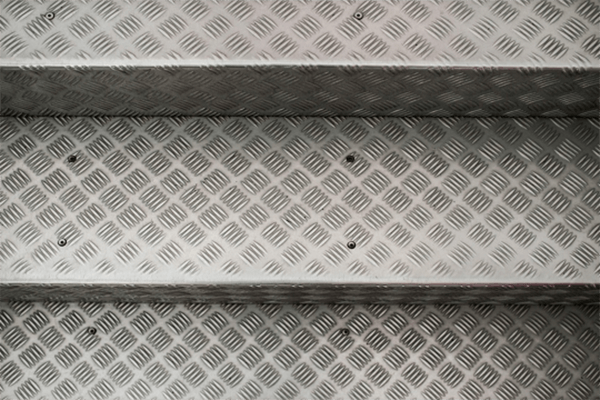

304 Stainless Steel Chequered Plates

MORE DETAILS ABOUT 304 Stainless Steel Chequered Plates

Application of Stainless Steel Plates

Architectural Application
Stainless Steel Checker Plates offer strengthdurability,and slip resistance, making themideal for building facades, staircases, andarchitectural features.They are commonly usedin commercial buildings, public infrastructure,and industrial facilities where both safety and aesthetics are important.

Interior Design
Stainless Steel Checker Plates contribute tostylish,contemporary interior designs. Theirtextured patterns and metallic finish enhancethe modern.industrial aesthetic of walls.ceilings, countertops, and furniture.

Ramps
Stainless Steel Checker Plates offer exceptionalslip resistance and durability. Their raised patterns enhance traction,ensuring safety inwet, oily, or high-traffic areas. They are widelyutilized in commercial, industrial, and publicaccess ramps.

Vehicle Interior

Stainless Steel Checker Plates improve vehicleflooring, cargo areas, and interior trims. Theiranti-slip properties and impact resistanceenhance safety and durability, making themideal for trucks, buses, and trailers.


Product Name 304 Stainless Steel Chequered Plates
Equivalent Grade 304: AISI 304, UNS S30400, SAE 304, DIN 1.4301, SUS 304, X5CrNi18-10
Standard GB, AISI, ASTM, DIN, EN, JIS
Process Hot Rolled, Cold Rolled, Forged
Sizes Thickness:3/4/5mm, Width:1219mm & 1500mm in slit edge ; 1250mm & 1530mm in mill edge
Surface Treatment NO.1, 2B


GENERAL INFO ABOUT EACH Stainless Steel Plate GRADE

304 are the most commonly used grades for stainless steel checkered plates as they are less expensive, highly versatile, easily roll-formed or shaped and offer excellent corrosion resistance and weldability, while also maintaining their durability.


Single Sheet of Plate Specification
Thickness Width
3/4/5mm 1219mm & 1500mm in slit edge
3/4/5mm 1250mm & 1530mm in mill edge

MORE DETAILS ABOUT EACH Stainless Steel Plate GRADE

  • Hot Forming For 304/304L/304H STAINLESS STEEL PLATE
  • Cold Forming For 304/304L/304H STAINLESS STEEL PLATE

304/304L/304H Stainless Steel Grade:

For maximum corrosion resistance, the material should be annealed at 1900°F (1038°C) minimum and water quenched or rapidly cooled by other means after hot working.

304/304L/304H Stainless Steel Grade:


It is quite ductile and forms easily. Cold working operations will increase the strength and hardness of the alloy and might leave it slightly magnetic.

CHEMICAL PROPERTIES

Material

C Mn P S Si Cr Ni Mo N Cu
304 0.07 2 0.045 0.03 0.75 17.50-19.50 8.00-10.5 / 0.1 /


MECHANICAL PROPERTIES

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201

MORE DETAILS ABOUT EACH Stainless Steel Plate PROCESS

  • Hot Rolled
  • Cold Rolled
  • Steel Making Process
  • Hot Roll Process

Hot rolling is a metalworking process. Such as steel ingots or billets are difficult to deform and process at room temperature, they are generally heated to 1100 to 1250° for rolling, this rolling process is called hot rolling. Most steel materials are rolled by hot rolling, the steel delivered in the hot-rolled state has a certain degree of corrosion resistance due to the high temperature, so it can bestored in the open air. In addition, hot rolling is that it can destroy the casting structure of the ingot, refine the grain of the steel, eliminate structural defects, make the steel structure dense,  and improve the hardness of the hot rolled steel.

Cold rolling refers to a rolling process that uses the pressure of rolls to squeeze steel to change the shape of the steel at room temperature. The advantafe of cold rolling is fast forming speed, high output, the coating is not damaged, and it can be made into a variety of cross-sectional forms to meet the needs of the use conditions. In addition, cold rolling can cause large plastic deformation of the steel, thereby increasing the yield point of the steel. Which is Widely used in home appliances and other industries.

MORE DETAILS ABOUT EACH Stainless Steel Plate SURFACE

  • NO.1
  • 2B
NO.1 surface treated by heat treatment and pickling after hot rolling. The  appearance is silver white, matt and bright. This surface is suitable for industries that require heat resistance and corrosion resistance, and the surface brightness is not important. Common applications include industrial tank and chemical industrial plants etc..
After 2D treatment, the final process is lightly cold rolled by a polishing roller to obtain proper gloss. The appearance is smooth and bright, and easy to re-grind to make the surface more brighter.  Common applications include building materials, tableware etc..
