Do You Know The Distinctions Between An S-beam, H-beam And W-beam?

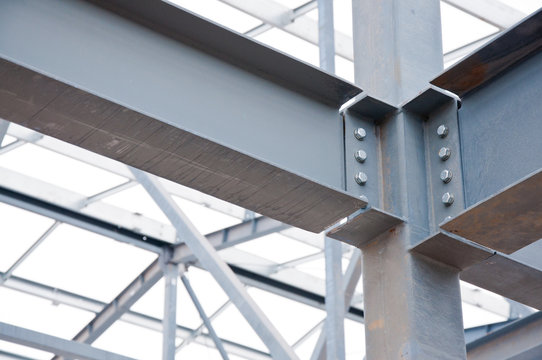

Stainless Steel beams is the most common component of structural framing systems. They can be positioned on their sides or at an angle and connect to columns via bolts, welds, and beam supports. Usually used in build bridges, warehouses and other large buildings etc,.

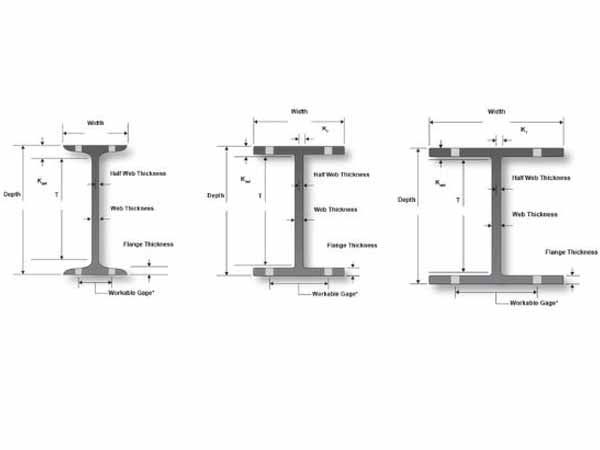

The basic beam parts of a steel beam is make up by vertical web and the horizontal legs/flanges. The first step in understanding the distinctions between different beam types—like the h-beam, w-beam, and s-beam is to understand what all these letters mean, and what goes into naming steel beams. Broadly, the names given to beams and other structural steel shapes refer directly to the product’s shape, cross section, or quality. The“S” in S-beams means“standard,” and the“W” in W-beams means“wide flange.” And H-beams are a type of wide beam.

W-beams: The W refers to“wide flanges.”The main difference between W beams is that the inner and outer flange surfaces are parallel. And the overall beam must have a depth that is equal to or greater than the flange width. Besides, compared with H- or S-beams, W beams have many more standard sections to choose from. And the W beams is that the flanges are thicker than the web. This aids in resisting bend stress. they are uausally considered the most commonly used beam in modern day construction worldwide.

H-beams: Similar to W-beams, H-beams have inner and outer flange surfaces that run parallel. But in H-beams the width of the flanges is approximately equal with the beam depth, and also displays an even thickness throughout. They are the largest and heaviest beams available and can tolerate larger weight loads.

S-beams: S-beams are available in the smallest size range, they are most commonly found in the construction and shipbuilding industries. The tapered legs is one its main design differences. Where W- and H-beams have even, blocky angles where the legs meet the web, S-beams are rounded. The another key characteristic for S-beams is width of the legs. as they are narrower than both W- and H-beams.

Steel Beams serve as the basis for support in many constructions and engineering projects. They are just one structural steel shape, but with various beam types available, it’s good to be able to tell them apart.
