Our products conform to GB, AISI, ASTM, DIN, EN, JIS standard for stainlesss steel coil, sheet and plate.

Incoloy 800 strip, UNS N08800 coil, 1.4876 nickel strip, alloy 800 slitted coil, Inconel 800 ribbon, heating element nickel alloy strip
BackYou are in :  Home  >  Product & Service  >  Nickel Alloy Strip  >  nickel alloy incoloy 800 strip

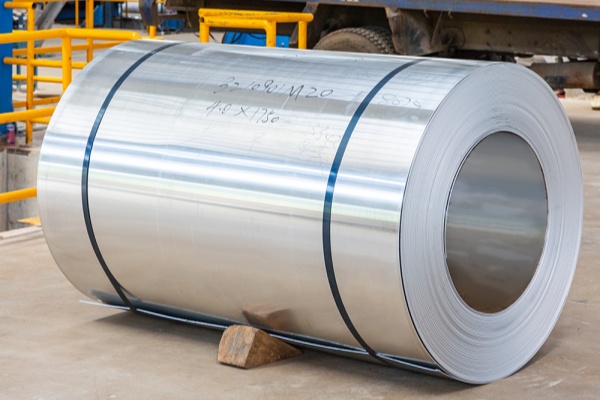

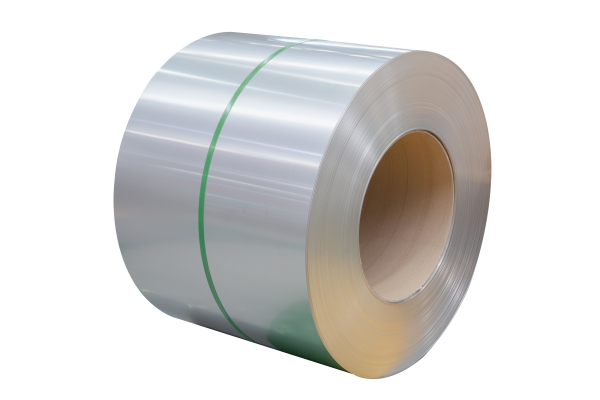

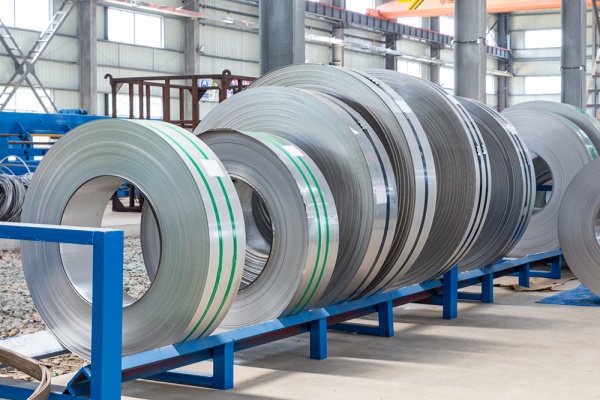

nickel alloy incoloy 800 strip

Precision-rolled Incoloy 800 strip (UNS N08800 / 1.4876) designed for high-temperature electrical heating elements, welded tubing, and continuous precision stamping. Outstanding Oxidation & Carburization Resistance: Stable oxide scale formation prevents degradation in thermal atmospheres up to 815°C (1500°F). Superior Deep Drawing & Stamping Ductility: Uniform grain structure and tight thickness tolerance ensure seamless high-speed continuous press operations. Excellent Resistance to Chloride SCC: Protects against stress-corrosion cracking in aqueous heating and chemical environment applications. Flexible Slitting & Edge Finish Options: Available in custom narrow widths with deburred, rounded, or mill edge finishes for continuous tube welding.
nickel alloy incoloy 800 strip
nickel alloy incoloy 800 strip
nickel alloy incoloy 800 strip

MORE DETAILS ABOUT nickel alloy incoloy 800 strip


High-Precision Micro-Slitting & Custom Edge Engineering


Narrow Slitting Capabilities: Custom slitting widths down to 5mm with minimum burr height for automated stamping line feed.



Tailored Edge Profiles: Supplies slit edges, deburred edges, and fully rounded edges to prevent stress concentration and line jams.



Versatile Packaging Options: Offered in individual pancake coils or traverse-wound (spooled) coils for ultra-long continuous production runs.


Protective Interleaving: Available with paper interleaving or protective film to guard sensitive bright surfaces during transit.


Product Name Incoloy 800 Strip, Alloy 800 Coil, UNS N08800 Precision Ribbon
Equivalent Grade Incoloy 800, Inconel 800, UNS N08800, Alloy 800, W.Nr. 1.4876
Standard ASTM B409, ASTM B514, ASME SB409, EN 10028-7
Process Cold Rolled (CR), Bright Annealed (BA), Solution Annealed & Slitted
Sizes Thickness: 0.05 - 3.0mm; Width: 5 - 600mm; Length: Continuous Coil / Cut to length
Edge & Surface Finish Edges: Mill, Deburred, Slit, Rounded; Finish: 2B, BA (Bright Annealed), Polished
Temper Condition Soft / Annealed (Deep Drawing Quality), Quarter Hard, Half Hard, Full Hard
Application Heating Element Sheathing, Electric Appliance Tubes, Heat Exchanger Welded Tubes, Expansion Bellows

GENERAL INFO ABOUT EACH Nickel Alloy Strip GRADE

Incoloy 800 (UNS N08800) strip is widely processed into thin-walled welded tubing, electrical heating element sheaths, and flexible expansion joints. Its cold-rolled, bright-annealed surface ensures excellent formability during automatic tube-forming and high-speed stamping operations, while maintaining structural resistance against oxidation and high-temperature stress corrosion up to 815°C (1500°F).

Single Strip Of Rolling & Slitting Specification
Thickness/Width 10 - 50mm 50 - 150mm 150 - 300mm 300 - 500mm 500 - 600mm
0.05 - 0.2mm - -
0.2 - 0.8mm
0.8 - 1.5mm
1.5 - 3.0mm

MORE DETAILS ABOUT EACH Nickel Alloy Strip GRADE

  • Cold Forming For 316/316L STAINLESS STEEL STRIP
  • Hot Forming For 321/321H STAINLESS STEEL STRIP

316/316L Stainless Steel Grade:


It is quite ductile and forms easily. Cold working operations will increase the strength and hardness of the alloy and might leave it slightly magnetic.

321/321H Stainless Steel Grade:


The high sulfur content has a detrimental impact on hot workability. If hot forming is required, recommended to consider other alternative materials.

CHEMICAL PROPERTIES

Material Ni Cr Fe C Al Ti Mn Si Cu S
N08800 30.0-35.0 19.0-23.0 Bal (≥39.5) 0.01-0.10 0.15-0.60 0.15-0.60 1.50 max 1.00 max 0.75 max 0.015 max

MECHANICAL PROPERTIES

Material / Condition Tensile strength Yield strength 0.2 Elongation Hardness HV
N08800 (Annealed) ≥ 520 N/mm² ≥ 205 N/mm² ≥ 30% ≤ 180 HV

MORE DETAILS ABOUT EACH Nickel Alloy Strip PROCESS

  • Cold Rolled
  • Solid Solutions & Pickling

Cold rolling refers to a rolling process that uses the pressure of rolls to squeeze steel to change the shape of the steel at room temperature. The advantafe of cold rolling is fast forming speed, high output, the coating is not damaged, and it can be made into a variety of cross-sectional forms to meet the needs of the use conditions. In addition, cold rolling can cause large plastic deformation of the steel, thereby increasing the yield point of the steel. Which is Widely used in home appliances and other industries.

MORE DETAILS ABOUT EACH Nickel Alloy Strip SURFACE

  • NO.1
  • BA
NO.1 surface treated by heat treatment and pickling after hot rolling. The  appearance is silver white, matt and bright. This surface is suitable for industries that require heat resistance and corrosion resistance, and the surface brightness is not important. Common applications include industrial tank and chemical industrial plants etc..
BA surface is also produced by cold rolling and de-scaling. It has excellent surface gloss, high reflectivity. In addition, The very smooth surface also makes this surface highly suitable for further finishing processes such as mirror polishing and chrome plating. Common applications include catering equipment etc..

FREQUENTLY ASKED QUESTIONS

  • What Is Inconel 718 Plate Primarily Used For In Aerospace Applications?
  • What Are The Welding Considerations For Inconel 718 Plates?

What Is Inconel 718 Plate Primarily Used For In Aerospace Applications?


Answer:


Inconel 718 plates are essential in aerospace applications due to their high strength, excellent oxidation resistance, and ability to withstand extreme temperatures. They are commonly used in jet engine components like turbine blades and compressor discs, as well as rocket motors and spacecraft structures, where their mechanical integrity is critical under severe thermal and mechanical stresses. This makes Inconel 718 a go-to material for aerospace engineers seeking reliability and durability in challenging environments.


What Are The Welding Considerations For Inconel 718 Plates?


Answer:


Welding Inconel 718 plates requires careful control of parameters due to its susceptibility to cracking and deformation. Pre-heating and post-weld heat treatment are often necessary to ensure weld integrity and to prevent phase transformation that can lead to brittleness. The use of compatible filler materials, such as Inconel 718 itself or specific nickel-based fillers, is crucial to maintain the mechanical properties and corrosion resistance of the welded joints, making it suitable for demanding industrial applications.
